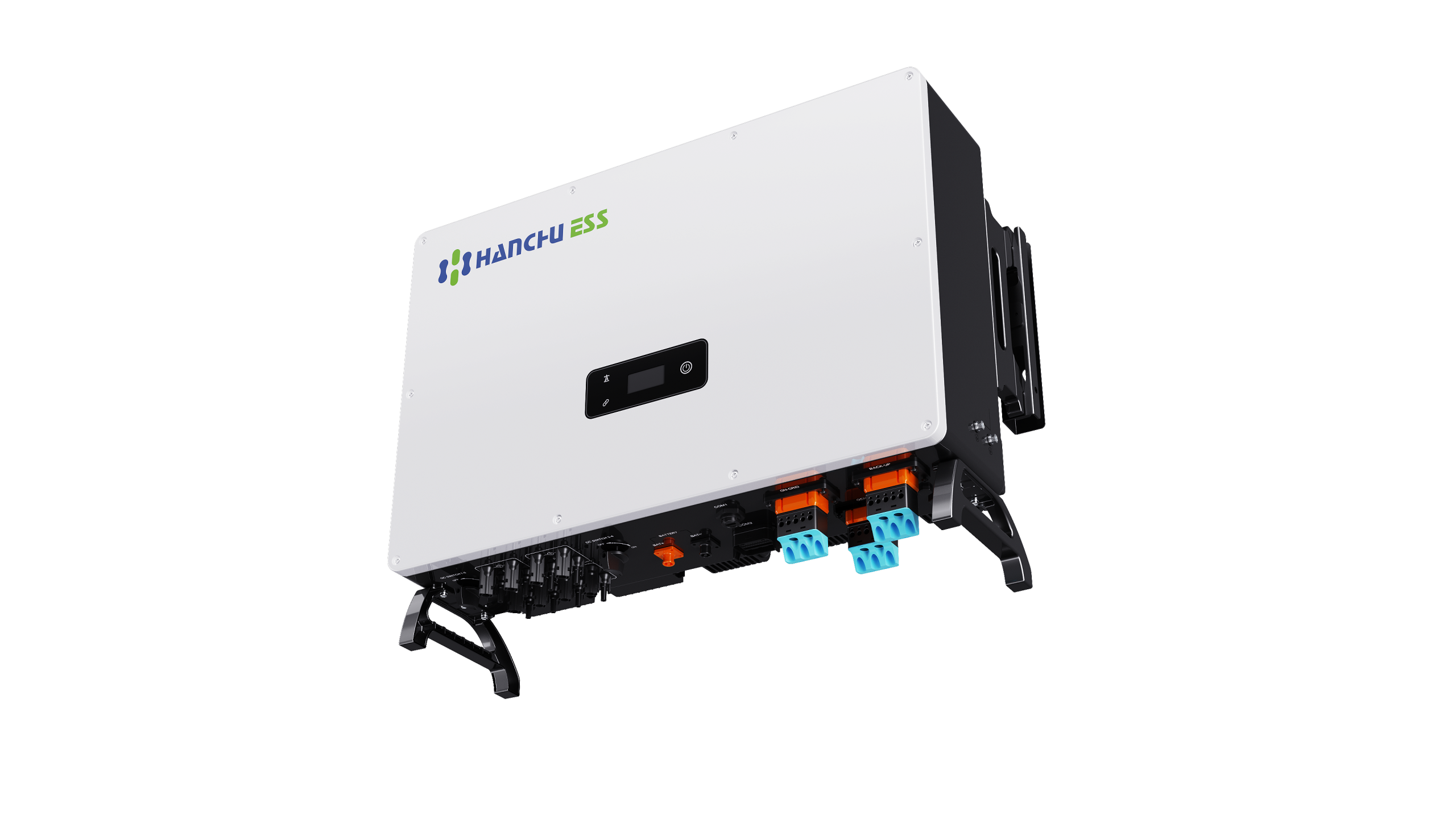

HANCHU 30KVA HYBRID INVERTER – 3PHASE

Name: HANCHU 30KVA HYBRID INVERTER - 3PHASE
SKU: CESS-HY-30K-1
Price: 83000.00 ZAR
Availability: InStock

The three-phase inverter specifically designed for commercial and larger residential homes. It supports multi-unit parallel operation and is perfectly compatible with the Hanchu HV series batteries. It offers various power levels of 30kW, providing higher power output to ensure stable energy for loads. The design, manufacturing, and testing processes of the inverter strictly adhere to relevant safety standards and have passed international certifications and grid connection standards of multiple countries, ensuring safe use.

Original price was: R87000,00.Current price is: R83000,00.

Guaranteed Safe Checkout

Description
Reviews (0)

Technical Specifications

Model: CESS-HY-30K
MPPT voltage range / rated input voltage: 200V to 850V / 620V
No. of MPPT / No. of DC Inputs per MPPT: 4 / 2
Max. PV input current: 30Ax4
Battery voltage range: 135V to 750V
Rated grid side output power: 25kW
Max. grid side output apparent power: 27kVA
Max. grid side input apparent power: 30kVA
Rated back-up side output power: 25kW
Max. switch time: <20ms
Ingree protection degree: IP65

Multiple Protection Measures

The system incorporates multiple protection functions including DC reverse polarity protection, surge protection, insulation resistance protection, AC over-voltage protection, overload protection, and AC short-circuit protection, ensuring comprehensive safety during system operation.

Type 2 Surge Protection

Both AC and DC sides are equipped with MOV secondary lightning protection, reducing the risk of equipment failure caused by unstable factors such as lightning strikes, ensuring the stable operation of the power system.

UPS-Level Grid-tied and Off-grid Switching

The <20ms grid-tied and off-grid switching feature protects equipment by ensuring continuous power supply, thereby guaranteeing the stable operation of the electrical system.

DOWNLOAD DATA SHEET: CESS-HY-25K -50K
