Product Features
- Pure sine wave Power factor 1.0.
- PV input 500VDC Max Built-in MPPT 100A.
- Capable to work without battery.
- Detachable dust cover for harsh environments.
- Support multiple output priority: UTL, SOL, SBU, SUB.
- EQ function to optimize battery performance and extend lifecycle.
Product Specifications
| Capacity | 3.5KVA/3.5KW |
| Input | |
| Nominal Voltage | 230VAC |
| Acceptable Voltage Range | 170-280VAC(For Personal Computer); 90-280VAC(For Home Appliances) |
| Frequency | 50/60 Hz(Auto Sensing) |
| Output | |
| Nominal Voltage | 220/230VAC±5% |
| Surge Power | 7000VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms(For Personal Computer); 20ms(For Home Appliances) |
| Peak Efficiency(PV to INV) | 96% |
| Peak Efficiency(Battery to INV) | 93% |
| Overload Protection | 5s@≥150% load; 10s@110%~150% load |
| Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1(Inductive or Capacitive) |
| Battery | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Over Charge Protection | 33VDC |
| Charging Method | CC / CV |
| Solar Charger & AC Charger | |
| Solar Charger Type | MPPT |
| Max.PV Array Power | 4000W |
| Max.PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 120VDC~450VDC |
| Max.Solar Input Current | 15A |
| Max.Solar Charge Current | 100A |
| Max.AC Charge Current | 60A |
| Max.Charge Current | 100A |
| Physical | |
| Dimensions, D*W*H | 448*295*121mm |
| Package Dimensions, D*W*H | 560*375*190mm |
| Net Weight | 7Kg |

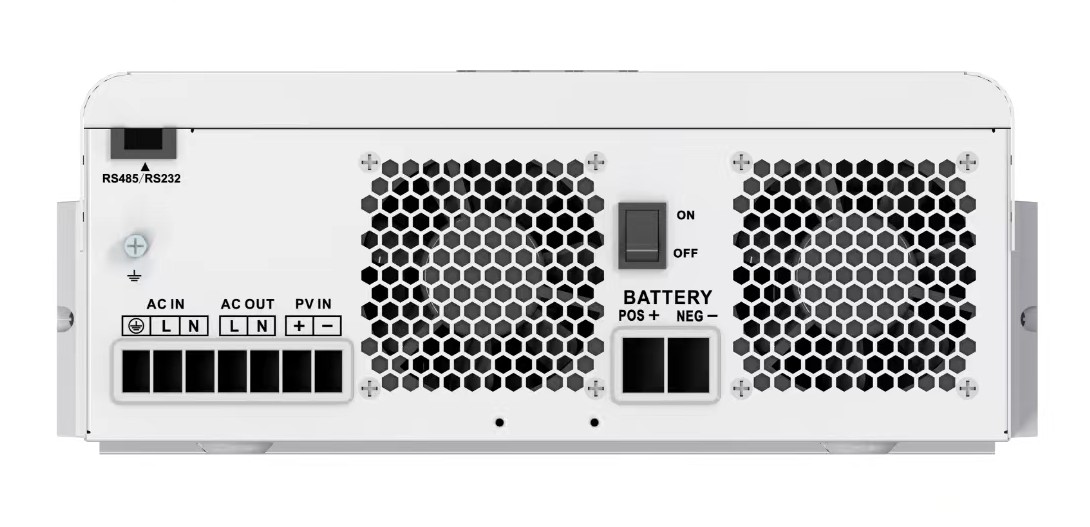

| Communication Interface | USB / RS232 / Dry-contact |
| Environment | |
| Operating Temperature Range | (-10°C ~ 50°C) |
| Storage Temperature | (-15°C ~ 50°C) |
| Humidity | 5% to 95% Relative Humidity ( Non-condensing ) |
