Product Features

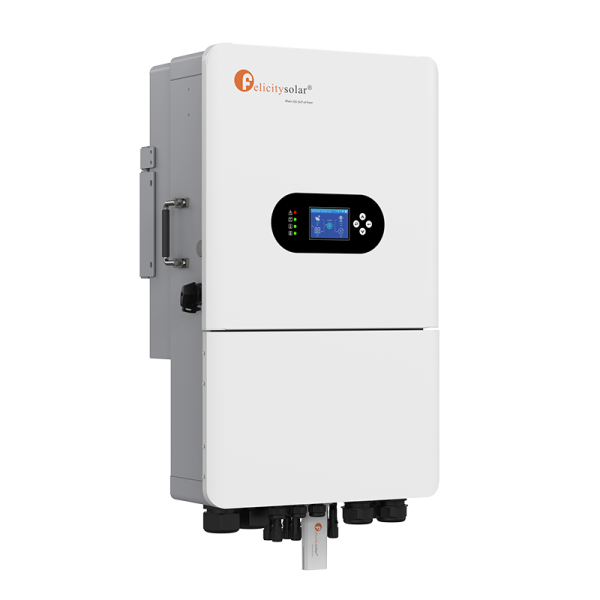

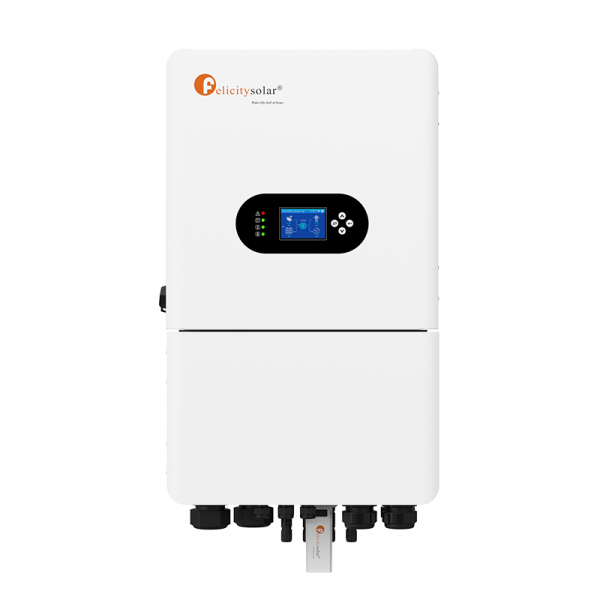

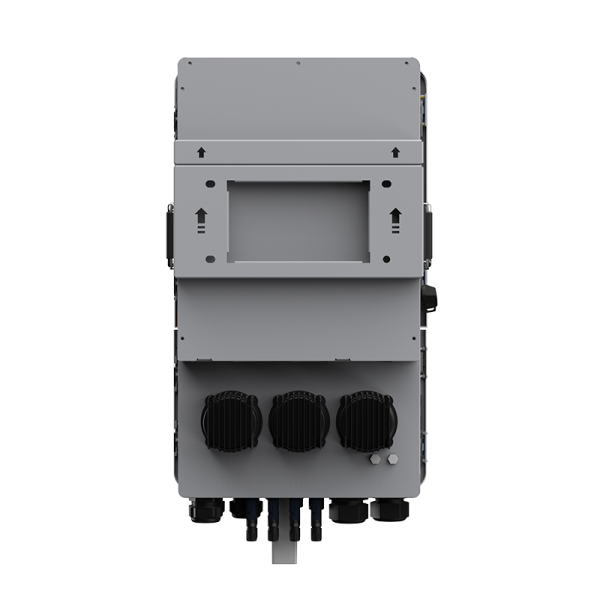

✅ 20kW / 20kVA Three-Phase Hybrid Inverter
✅ Compatible with 48V lithium-ion and lead-acid battery systems
✅ High battery charge & discharge capability for powerful backup performance
✅ Supports up to 32kW solar PV input for maximum solar harvesting
✅ Dual MPPT technology for improved solar efficiency
✅ 100% unbalanced three-phase load support
✅ Seamless backup power during outages
✅ Smart energy management with programmable operating modes
✅ WiFi monitoring and LCD touchscreen display
✅ IP65-rated design suitable for indoor or outdoor installation
✅ Expandable system with parallel inverter capability
Product Information
| Model | IVGM10KLP3G1 | IVGM12KLP3G1 | IVGM14KLP3G1 | IVGM15KLP3G1 | IVGM16KLP3G1 | IVGM18KLP3G1 | IVGM20KLP3G1 |
|---|---|---|---|---|---|---|---|
|
Rated Output Power |
10kW
|
12kW
|
14kW
|
15kW
|
16kW
|
18kW
|
20kW
|
|
Max. PV Input Power |
15kW
|
18kW
|
22.4kW
|
24kW
|
25.6kW
|
28.8kW
|
32kW
|
|
No. of MPP Trackers/No. of Strings MPP Tracker |
2/2+2
|
||||||
|
Rated Input/Output Voltage/Range |
220/380,230/400Vac(-20%~+15%)
|
||||||
|
Rated Input/Output Grid Frequency/Range |
50/60Hz(45~55Hz/55~65Hz)
|
||||||
|
Protection Level |
IP65
|
||||||
|
Safety EMC / Standard |
IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2
|
||||||
DOWNLOAD DATA SHEET: IVGM10KLP3G1 IVGM12KLP3G1 IVGM14KLP3G1 IVGM15KLP3G1 IVGM16KLP3G1 IVGM18KLP3G1 IVGM20KLP3G1 Datasheet – EN
