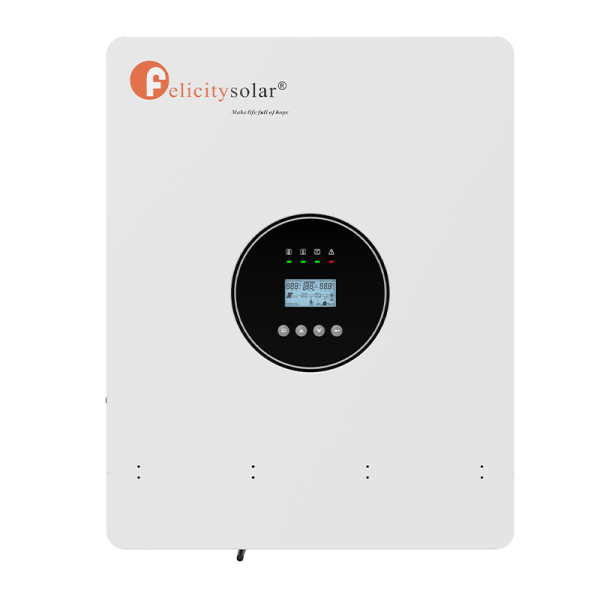

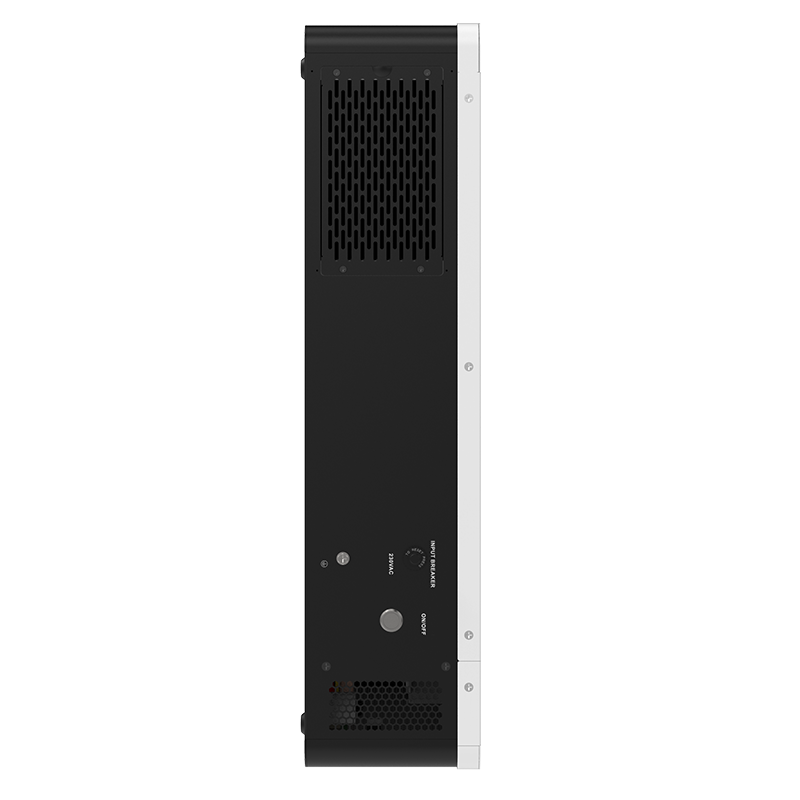

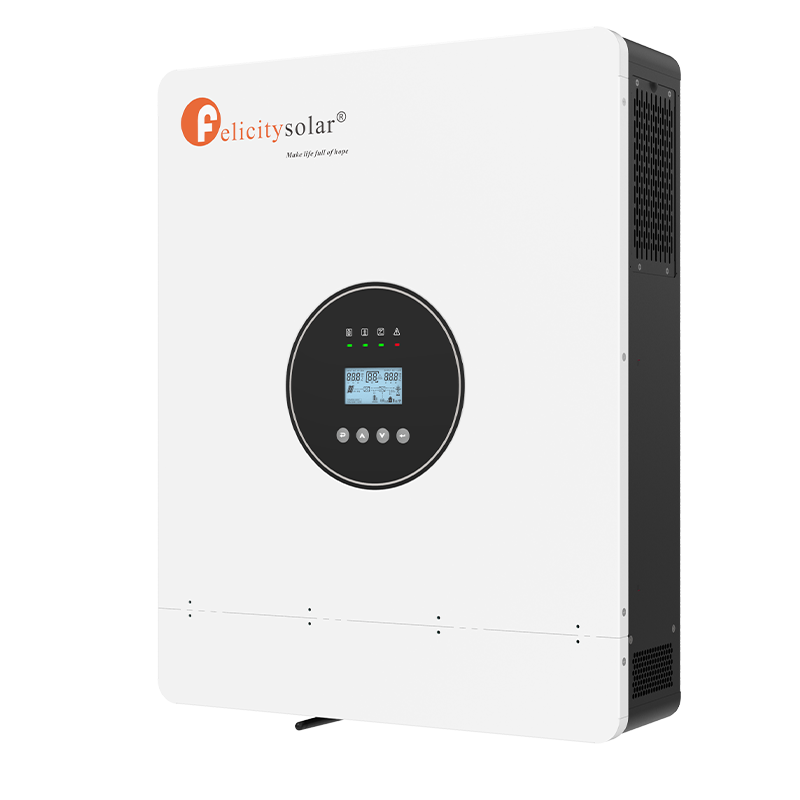

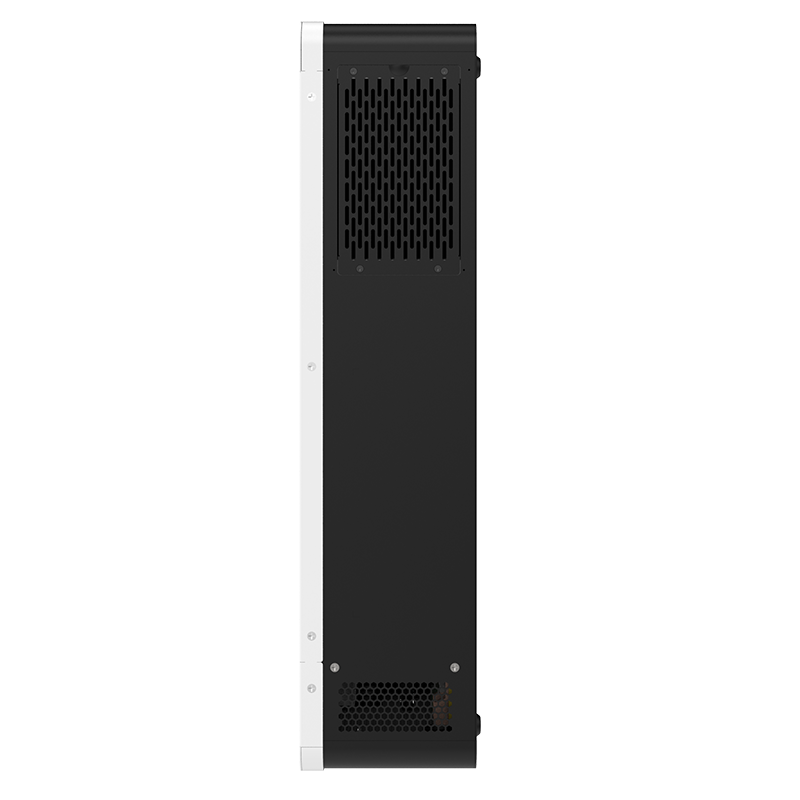

Product Information
• 12kW Pure Sine Wave Output for stable and reliable power supply
• 48V Battery System compatible with lithium and lead-acid batteries
• Dual MPPT Solar Inputs for maximum solar harvesting efficiency
• Supports up to 15kW–16kW of solar PV input capacity
• Built-in Wi-Fi Monitoring for real-time system performance tracking via mobile app
• Generator and Grid Compatibility for enhanced backup flexibility
• Parallel Operation capability for system expansion and increased power output
• Intelligent LCD Display for easy configuration and monitoring
• Lithium Battery Activation Function for seamless battery integration
• Comprehensive Protection against overload, short circuit, overheating, and low battery conditions
• Auto Restart and Cold Start Functions for dependable operation during power interruptions.
Product Specifications
| Model | IVEM8048-II | IVEM12048-II |
|---|---|---|
|
Rated Output Power |
8kW
|
12kW
|
|
Nominal DC Input Voltage |
48V
|
|
|
Nominal Input Voltage |
230Vac
|
|
|
Input Voltage Range |
90-280Vac
|
|
|
Max. Smart Load Output Current |
40A
|
60A
|
|
Max. Charge Current |
150A
|
240A
|
|
Max. Input Power |
10000W(5000W for single PV)
|
15000W(7500W for single PV)
|
|
Nominal OutputFrequency(Hz) |
50±0.3Hz/60Hz±0.3Hz (Adjustable)
|
|
|
Parallel capability |
Yes,up to 6 units
|
|
DOWNLOAD DATA SHEET: IVEM12048-II Datasheet – EN
